C4F7N (heptafluoroisobutyronitrile / perfluoroisobutyronitrile, also known commercially as 3M Novec 4710) is one of the leading eco-friendly alternatives to SF6 for gas-insulated switchgear (GIS), circuit breakers, gas-insulated lines (GIL), transformers, and other medium- and high-voltage electrical equipment.
Why C4F7N beats SF6
| Property | C4F7N (pure) | SF6 | Advantage of C4F7N |
|---|---|---|---|
| Dielectric strength (relative) | ~2.0–2.2× | 1.0 | Stronger insulation at same pressure |
| GWP (100-year) | ~2,100 | 23,500 | ~91% lower climate impact |
| Atmospheric lifetime | ~30 years | ~3,200 years | Far shorter persistence |
| Boiling point | –4.7 °C | –64 °C | Manageable with CO₂/N₂/O₂ mixtures |
| Flammability | Non-flammable | Non-flammable | Same |
| Ozone depletion | Zero | Zero | Same |
Pure C4F7N has roughly twice the dielectric strength of SF6, so mixtures of only 4–10% C4F7N in CO₂ (or CO₂ + O₂) deliver performance comparable to pure SF6 while drastically cutting the overall GWP of the mixture (often to a few hundred or less). These blends are already type-tested and in commercial service up to 145–420 kV class equipment from major manufacturers (GE g³ technology is the best-known example).
Key selling points for your customers
- Regulatory compliance — Meets tightening SF6 phase-down / ban rules in the EU, California, and growing lists of other jurisdictions.
- Drop-in design compatibility — Equipment can keep essentially the same compact footprint and voltage ratings as SF6 designs.
- Proven field experience — Pilot and commercial installations have been running for years with good return-of-experience data.
- Arc-quenching and insulation — Excellent performance in both roles when properly mixed.

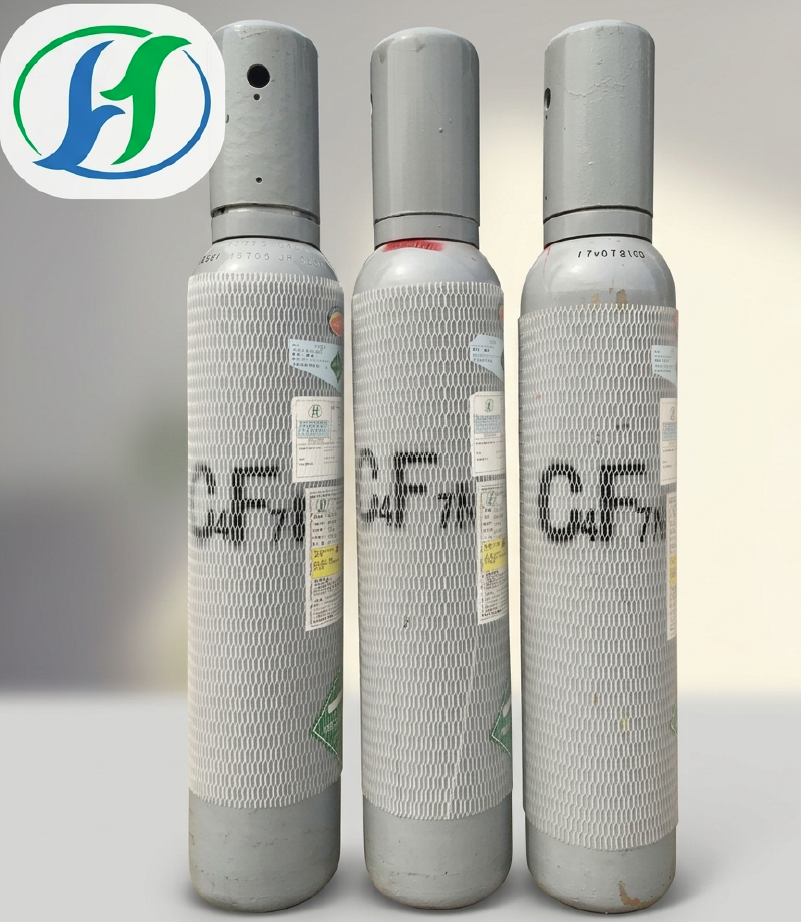

- Supply chain ready — Available from multiple manufacturers (3M/Novec, Beijing Yuji, and other specialty fluorochemical producers) in high purity grades suitable for electrical use.
Typical applications
- High-voltage GIS and GIL
- Circuit breakers and switchgear (medium & high voltage)
- Instrument transformers
- Any SF6-filled equipment where GWP reduction is required without sacrificing performance
Bottom line for sales conversations: “C4F7N mixtures give you SF6-level (or better) dielectric performance, the same equipment footprint, and a dramatically lower carbon footprint — ready for today’s regulations and tomorrow’s net-zero targets.”
